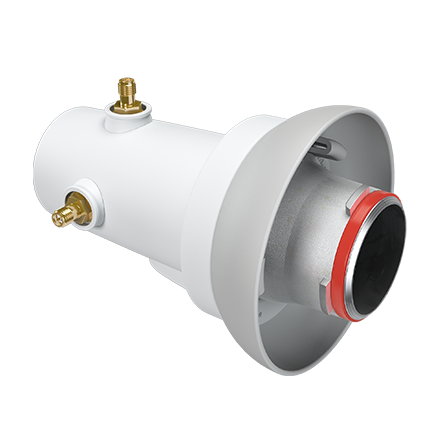

TwistPort™ Adaptor with SMA Connectors

TwistPort™ Adaptor with SMA Connectors

Allows connection of any SMA-based radio to any TwistPort™ antenna

What is TPA-SMA

TwistPort Adaptor (TPA) adapts 3rd party radios to RF elements® proprietary TwistPort™ waveguide connector. We typically provide custom made TPA for specific 3rd party radios, following their shape and connector setup. Custom designed TPA allows for the best RF performance, minimal RF loss and excellent user experience.

Not all radios are able to fit custom designed TPA. They might be too bulky, too heavy or simply we do not know about them. For these radios we created TPA that provides RP-SMA female connector interface.

RP-SMA Coaxial Interface

TPA-SMA provides industry most used RP-SMA female coaxial interface in dual linear H+V polarization.

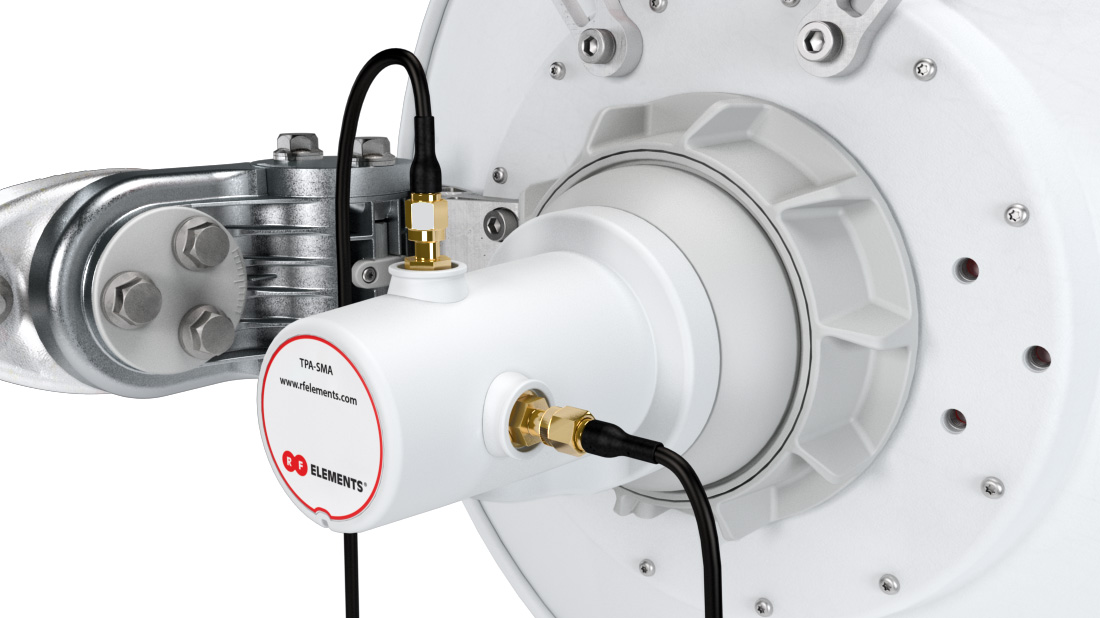

TPA SMA pigtaily v4

Performance

TPA-SMA covers an ultra-wide band spectrum of 5180-6400 MHz and performs with superb efficiency.

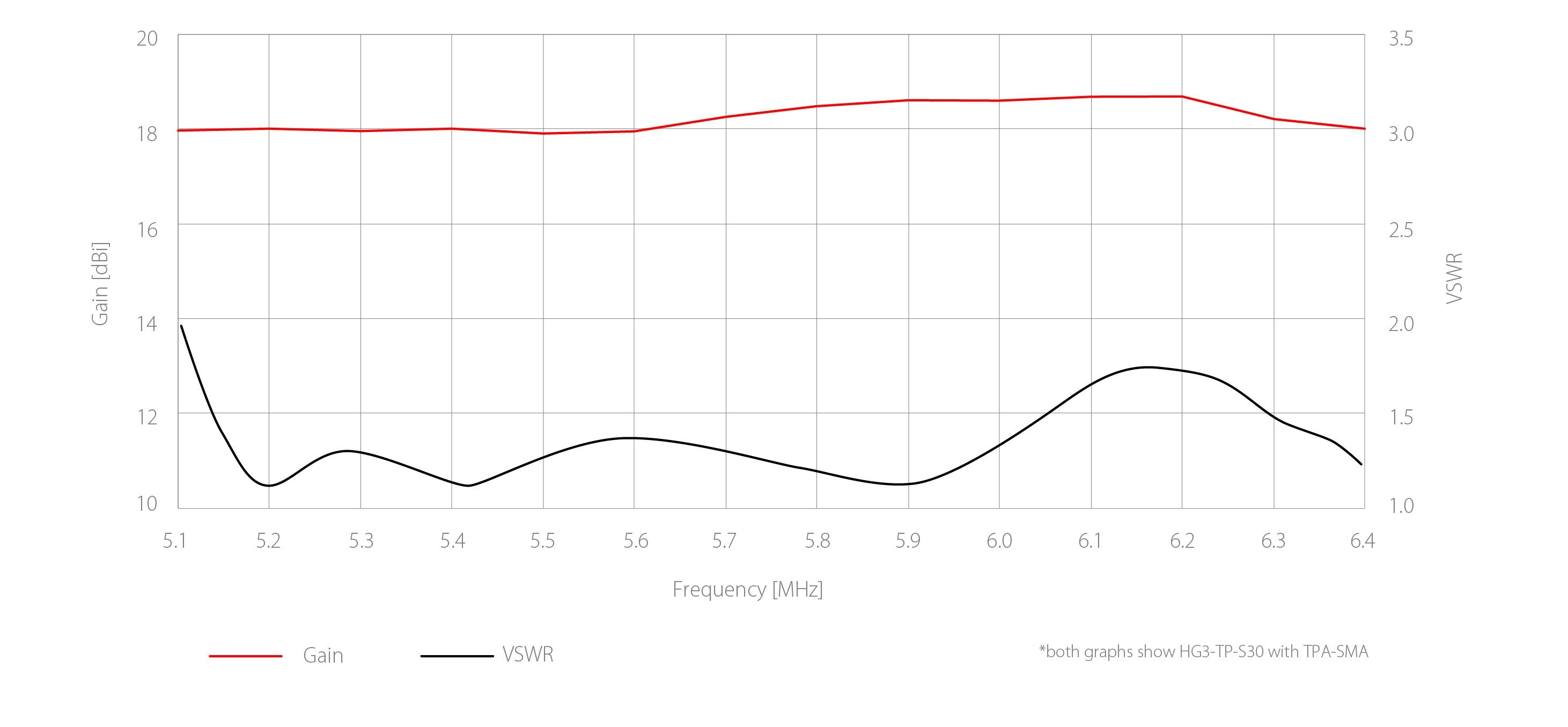

Gain with TPA SMA

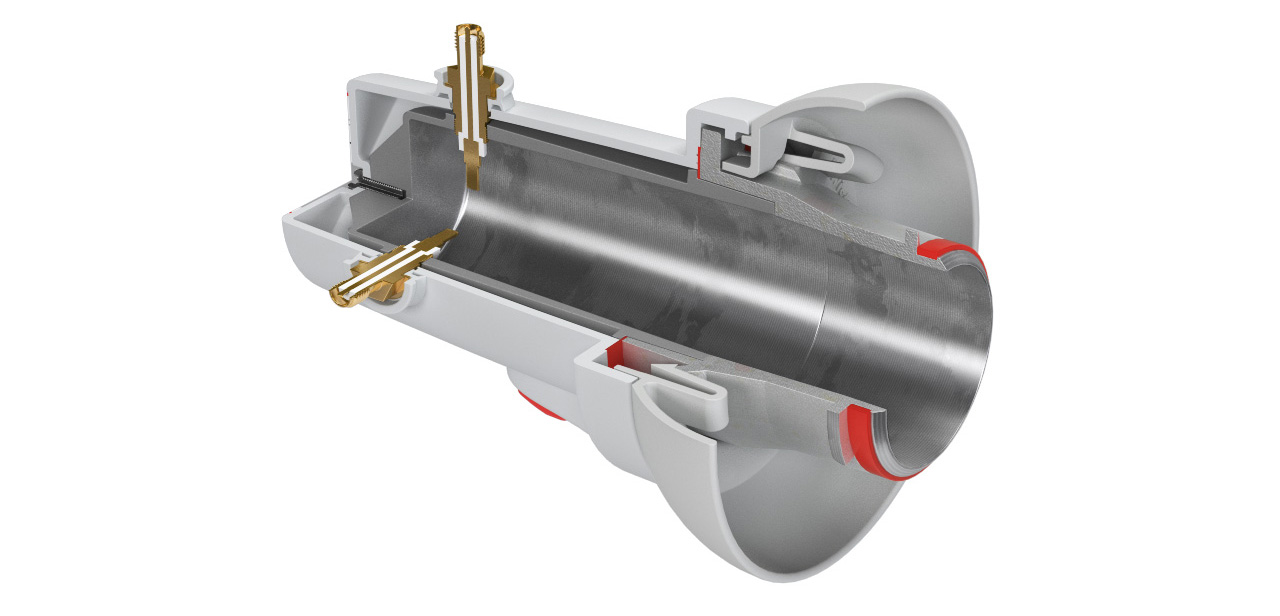

Minimized Loss

RP-SMA connectors are placed directly on waveguide, avoiding use of inner coaxial cables and minimizing loss to necessary minimum.

TPA SMA Minimized Loss 2
